IPOD NANO - Mp3 player APPLE - Free user manual and instructions

Product Type	MP3 player with docking station
Brand	Apple
Model	iPod Nano (2nd generation)
Storage Capacity	1 GB, 2 GB or 4 GB
Dimensions	40.2 x 90.7 x 6.5 mm
Weight	40 g
Display	1.5 inches, color (220x176 pixels)
Battery	Built-in rechargeable lithium-ion battery
Battery Life	Up to 24 hours of music playback
Connectivity	Dock port, 3.5 mm mini-jack
Supported Audio Formats	AAC, MP3, WAV, Apple Lossless, AIFF
Main Features	Music playback, FM radio, podcasts, photos
Power Source	Via computer (USB) or optional power adapter
Care and Cleaning	Wipe with a soft, dry cloth; avoid moisture
Safety	Do not expose to water; use only Apple accessories
Spare Parts and Repairability	Battery not user-replaceable; Apple service
Box Contents	iPod nano, earphones, USB cable, docking station, quick start guide

Frequently Asked Questions - IPOD NANO APPLE

How to transfer music to iPod Nano?

Connect the iPod Nano to your computer via USB cable, then use iTunes (on Mac or PC) to sync your music library. Make sure you have the latest version of iTunes.

What to do if iPod Nano does not turn on?

Plug it into a power source (computer or power adapter) for at least 10 minutes. If the screen remains black, try resetting the device by simultaneously holding down the Menu and Center buttons for 6 seconds.

How to use the docking station?

Place the iPod Nano on the station connector. Connect the station to your computer or a power adapter via the USB cable. To listen to music on speakers, connect the station's line-out to your speakers via a 3.5 mm mini-jack audio cable.

How to adjust the volume?

Use the iPod Nano's click wheel to adjust the volume. If using external speakers, also adjust the volume on those. To prevent hearing damage, start at a low volume.

Which audio formats are supported?

The iPod Nano supports AAC, MP3, WAV, Apple Lossless, and AIFF formats. You can also play audiobooks in Audible format and variable bitrate MP3 files.

How to start the FM radio?

From the main menu, select 'Radio'. The iPod Nano uses the earphones as an antenna. Automatically search for stations or tune manually with the click wheel.

Can I use iPod Nano as an external drive?

Yes, but only if you enable the 'Use as disk' option in iTunes (in the iPod Summary tab). This allows storing files other than music, but may reduce battery life.

How to clean the iPod Nano?

Turn off the device before cleaning. Use a soft, dry, lint-free cloth. Never use liquid or abrasive products. Avoid cleaning the connectors.

What to do if the battery drains quickly?

The lithium-ion battery has a limited lifespan. Make sure you use the latest software update. Avoid extreme temperatures. If the problem persists, contact Apple Support.

How to find additional accessories?

Visit www.apple.com/ipodstore to purchase earphones, power adapters, audio cables, armbands, and other accessories compatible with iPod Nano.

USER MANUAL IPOD NANO APPLE

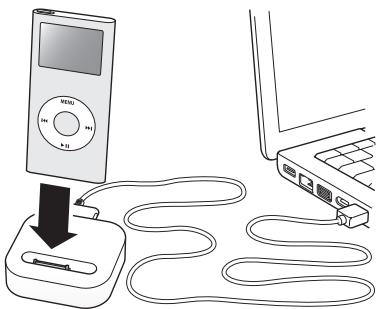

Congratulations on purchasing your iPod nano Dock - it holds iPod nano upright as it charges, loads music and photos, and plays music.

Use the cable included with your iPod nano to connect the Dock to your computer or to an optional iPod Power Adapter. Then put iPod nano in the Dock.

Important: This Dock is compatible only with iPod nano (Second Generation).

iPod nano Dock at a Glance

Dock connector port

Connect the Dock to your computer or an optional iPod Power Adapter using the cable included with your iPod nano.

iPod connector

Place iPod nano in the Dock to charge the battery, transfer songs and photos, and listen to music.

Line out port

Connect speakers or your home stereo using an audio cable with a standard 3.5 millimeter stereo miniplug.

Playing Music Through External Speakers or a Stereo

Using the iPod nano Dock, you can play music from iPod nano over externally powered speakers or a home stereo. You need an audio cable with a standard 3.5 millimeter stereo miniplug that's used by most external speakers.

To use your iPod nano with the Dock to play your music through speakers or a stereo:

1 Place iPod nano in the Dock.
2 Use the audio cable to connect the speakers or stereo to the Dock line out port.
3 Use the iPod nano controls to play music and use the volume controls on the external source to adjust the volume.

To play music when the Dock is connected to your computer, iPod nano must not be enabled for use as a disk (for information about using iPod nano as a disk, see the iPod nano Features Guide at www.apple.com/support/ipoD).

Note: You can use the optional iPod Power Adapter to charge your iPod nano while listening to music away from your computer.

Additional Accessories

You can purchase the following iPod accessories at www.apple.com/ipodstore:

• iPod nano Lanyard Headphones
• iPod nano Armband
• iPod In-Ear Headphones
• iPod USB Power Adapter
  World Travel Adapter Kit
• Speakers, audio cables, headsets, car adapters, power adapters, and more

Service and Support

For iPod service and support information, go to www.apple.com/support/ipod.

iPod nano Dock 使用的

Service et assistance

www.apple.com/support/ipod

© 2006 Apple Computer, Inc. All rights reserved. Apple, the Apple logo, and iPod are trademarks of Apple Computer, Inc., registered in the U.S. and other countries.

02034-3776-A Printed in XXXX
